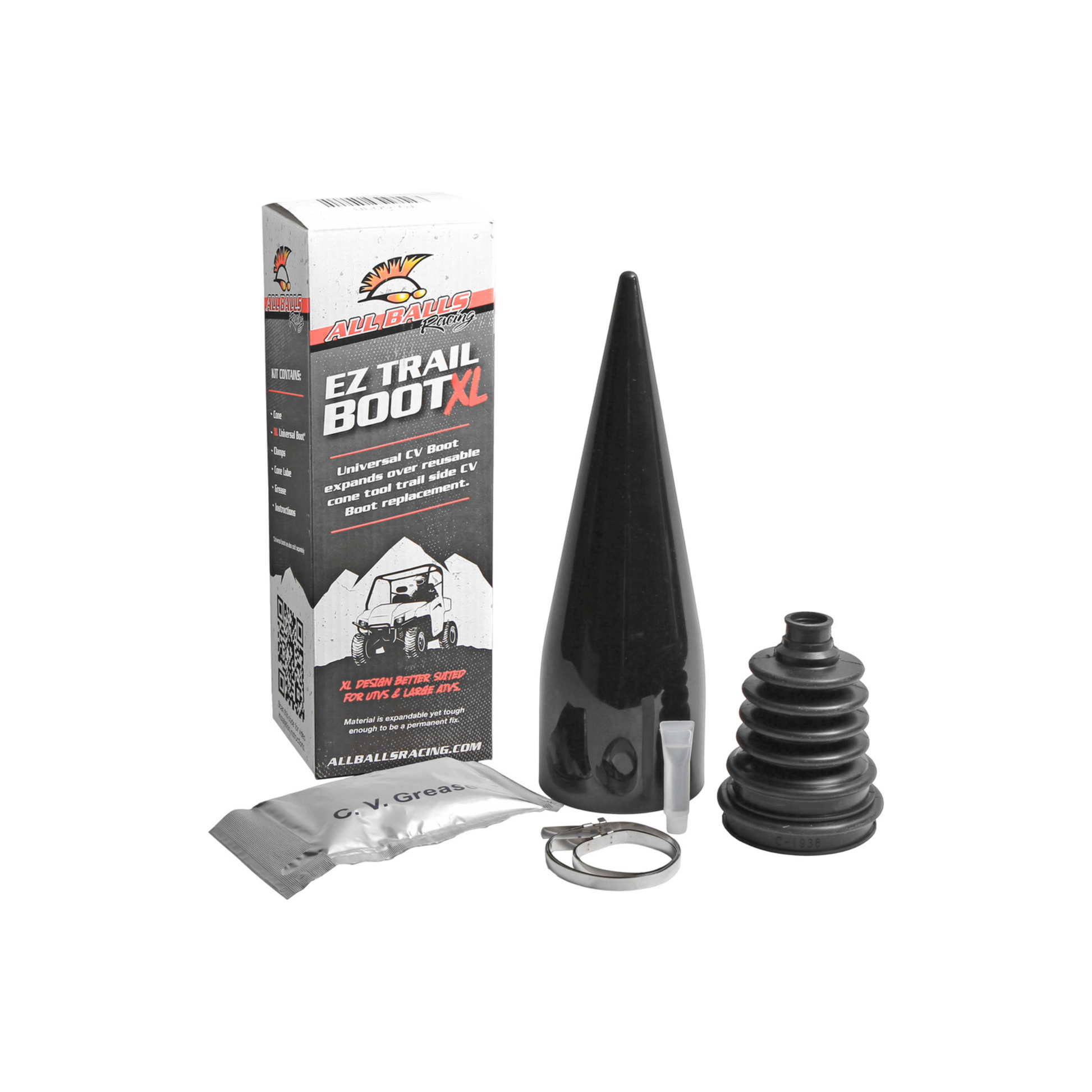

  • All Balls 19-5038 EZ Trail XL universal ATV UTV CV boot kit with cone installation tool
1 1

All Balls EZ Trail XL Universal CV Boot Kit with Tool – 19-5038

All Balls EZ Trail XL Universal CV Boot Kit with Tool – 19-5038

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

All Balls EZ Trail XL Universal CV Boot Kit with Tool

An expandable, extra-large CV boot kit designed for select UTVs and larger ATVs.

Brand: All Balls Racing

Manufacturer Part Number: 19-5038

WPS Part Number: 21-95038

UPC: 723980440467

Product Type: EZ Trail XL Universal CV Boot Kit with Installation Tool

Repair a damaged or leaking CV boot with the All Balls 19-5038 EZ Trail XL Universal CV Boot Kit. Designed for select UTVs and larger ATVs, this complete kit combines an expandable XL replacement boot with the reusable cone tool and installation supplies needed to complete the repair.

A torn CV boot can allow protective grease to escape while exposing the CV joint to water, mud, sand and abrasive trail debris. Replacing the boot before the joint becomes heavily contaminated can help protect a serviceable CV joint and prevent more extensive axle damage.

The flexible boot material is designed to stretch over the supplied cone tool during installation. Once installed, the boot can be trimmed and clamped to accommodate compatible CV-joint applications.

Kit Includes

  • One EZ Trail XL expandable universal CV boot
  • One reusable cone-style installation tool
  • Two stainless-steel CV boot clamps
  • Lithium-based molybdenum CV joint grease
  • Silicone cone lubricant
  • Installation instructions

Boot Measurements

Measurement Size
Small-End Diameter 19 mm
Large-End Clamping Options 67 mm or 75 mm

Product Highlights

  • XL design intended for select UTV and large ATV applications
  • Expandable boot stretches over the reusable installation cone
  • Two large-end clamping diameters provide greater fitting flexibility
  • Boot can be trimmed to the appropriate length for compatible applications
  • Flexible boot material remains pliable in cold temperatures
  • Helps retain grease and protect the CV joint from contamination
  • Suitable for shop repairs, preventative maintenance and trail-tool kits

Popular Applications

The following is a simplified selection of popular vehicles from the complete manufacturer application list. Exact compatibility may vary by year, trim, axle location and inner or outer CV-joint position.

Polaris
  • RZR 570: select 2012–2016 models
  • RZR 900 and S 900: select 2014–2016 models
  • RZR XP 900: select 2011–2013 models
  • RZR XP 1000 and XP 4 1000: select 2014–2016 models
  • Ranger 570 and Ranger XP 900: select 2013–2016 models
  • Sportsman 570, 850 and XP 1000: select 2014–2017 models
  • General 1000: select 2016 models
Can-Am
  • Outlander 500, 650, 800 and 1000: select 2011–2016 models
  • Outlander 570 and 850: select 2016 models
  • Renegade 500, 800 and 1000: select 2007–2016 models
  • Commander 1000 and Commander Max: select 2011–2016 models
  • Maverick 1000 and Maverick Max: select 2013–2016 models
  • Defender HD8 and HD10: select 2016 models
Honda
  • TRX420 Rancher: select 2014–2017 models
  • TRX500 Foreman and Rubicon: select 2014–2017 models
  • TRX680 Rincon: select 2006–2017 models
  • Pioneer 500, 700 and 700-4: select 2014–2016 models
  • Pioneer 1000 and 1000-5: select 2016 models
Kawasaki
  • Teryx 750 and Teryx4 750: select 2009–2013 models
  • Teryx 800 and Teryx4 800: select 2014–2017 models
  • Mule Pro-FX and Pro-FXT: select 2015–2017 models
  • Brute Force 300 and 750: select 2013–2017 models
Yamaha
  • Viking 700 and Viking VI: select 2014–2016 models
  • Wolverine 700: select 2016 models
  • YXZ1000R: select 2016 models
  • Kodiak 700: select 2016–2017 models
  • Grizzly 450: select 2011–2014 models
Suzuki
  • KingQuad 400: select 2011–2016 models
  • KingQuad 500: select 2011–2016 models
  • KingQuad 750: select 2011–2016 models
Arctic Cat
  • Wildcat 1000, Wildcat X and Wildcat 4: select 2013–2016 models
  • Wildcat Sport 700: select 2015–2017 models
  • Prowler 500, 700 and 1000: select models through 2017
  • Alterra 500 and 700: select 2016–2017 models

Important Fitment Notice: This is a universal-style replacement boot, but it does not fit every axle. Compare the original boot dimensions with the measurements shown above before ordering or beginning installation.

Always verify the vehicle year, make, model, trim, front or rear axle location and inner or outer CV-joint position. A single vehicle may require different boots at different axle positions.

Inspect the CV Joint Before Installation

This kit is intended to replace a damaged boot around a serviceable CV joint. If the joint is clicking, binding, heavily contaminated, corroded or excessively loose, replacing the complete CV joint or axle assembly may be the better repair.

Installation Note: Correct boot trimming, positioning, grease application and clamp installation are important for proper sealing and long-term CV-joint protection. Professional installation is recommended when proper axle-service tools and experience are not available.
