KFI 3,500 lb. Assault Series ATV/UTV Winch
The KFI 3,500 lb. Assault Series Winch is a strong recovery upgrade for ATV, UTV, and side-by-side owners who want dependable pulling power for trail riding, work use, mud, snow plowing, hunting, and everyday recovery situations.
This winch is available in two cable options. Choose the AM-35 with steel cable for a strong, traditional setup, or choose the AS-35 with synthetic cable for a lighter, easier-to-handle option. Both versions are rated at 3,500 lbs. and are built with an all-metal planetary gear drive, dynamic and mechanical braking, water-resistant seals, and an all-metal free spool clutch.
Available Options
| Option | Part Number | Brand Number | Cable Type |

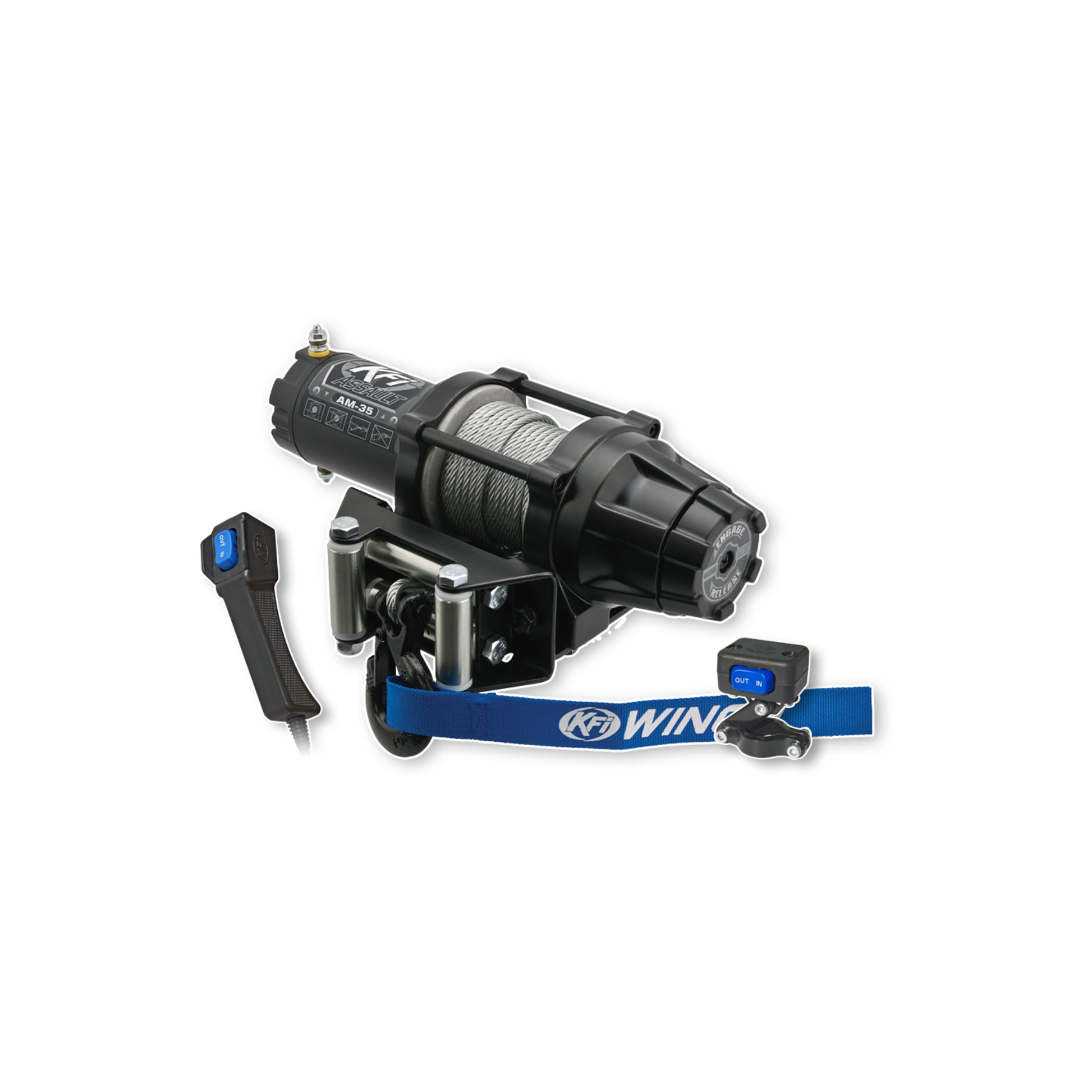

| Steel Cable | 10-0219 | AM-35 | 3/16" x 45.9' steel cable |

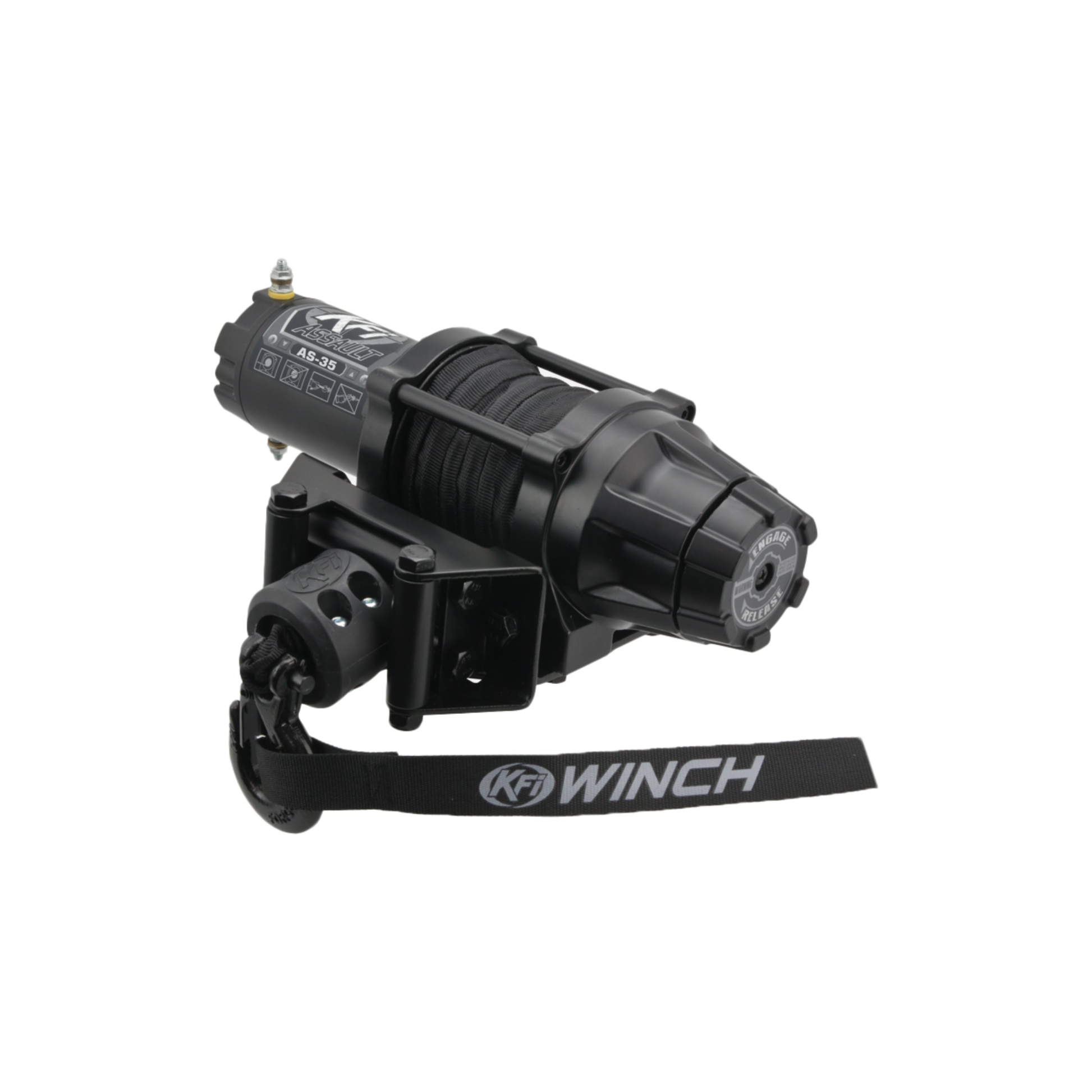

| Synthetic Cable | 10-0221 | AS-35 | 3/16" x 50' synthetic cable |
Key Features
- 3,500 lb. rated line pull
- Available with steel cable or synthetic cable
- 12V DC, 1.15 HP permanent magnet motor
- All-metal planetary gear drive
- 180:1 gear ratio
- Dynamic and mechanical braking system
- Water-resistant seals help protect internal components
- All-metal cam-activated free spool clutch
- Multi-directional POM roller fairlead
- Handlebar-mounted mini-rocker switch included
- 14' corded handheld remote included
- Heavy-duty electric contactor included
- Cable hook stopper included
- Installation hardware and instructions included
Product Specs
| Rated Line Pull | 3,500 lbs. |
| Motor | 12V DC, 1.15 HP Permanent Magnet |
| Gear Ratio | 180:1 |
| Gear / Transmission | All-Metal Planetary Gear Drive |
| Brake | Dynamic and Mechanical |
| Mounting Bolt Pattern | 3.00" x 4.88" 4-Hole |
| Recommended Battery | 12 Amp/hour minimum |
| Warranty | Limited 2 Year |
Variant Specs
| Variant | Cable | Drum Size | Winch Weight |
| AM-35 Steel Cable | 3/16" x 45.9' steel cable | 1.75" D x 2.76" L | 26.5 lbs. complete kit |
| AS-35 Synthetic Cable | 3/16" x 50' synthetic cable | 1.75" D x 3.19" L | 25.6 lbs. complete kit |
What Is Included?
- KFI 3,500 lb. Assault Series winch
- Steel cable or synthetic cable, depending on selected option
- Handlebar-mounted mini-rocker switch
- 14' corded handheld remote
- Heavy-duty electric contactor
- Multi-directional roller fairlead
- Cable hook stopper
- Wiring and installation hardware
- Detailed installation instructions
Important Fitment Note
This winch requires a model-specific ATV/UTV winch mount for proper installation. Please verify the correct mount for your machine before ordering.
The KFI 3,500 lb Assault Series Winch is a smart choice for ATV and light UTV owners who want reliable pulling power for trails, work, mud, snow plowing, and everyday recovery needs.
