KFI 5000 lb Wide Assault Series UTV/SxS Winch | Synthetic Rope | AS-50WX
KFI 5000 lb Wide Assault Series UTV/SxS Winch | Synthetic Rope | AS-50WX
SKU:10-0213
1 in stock
Couldn't load pickup availability

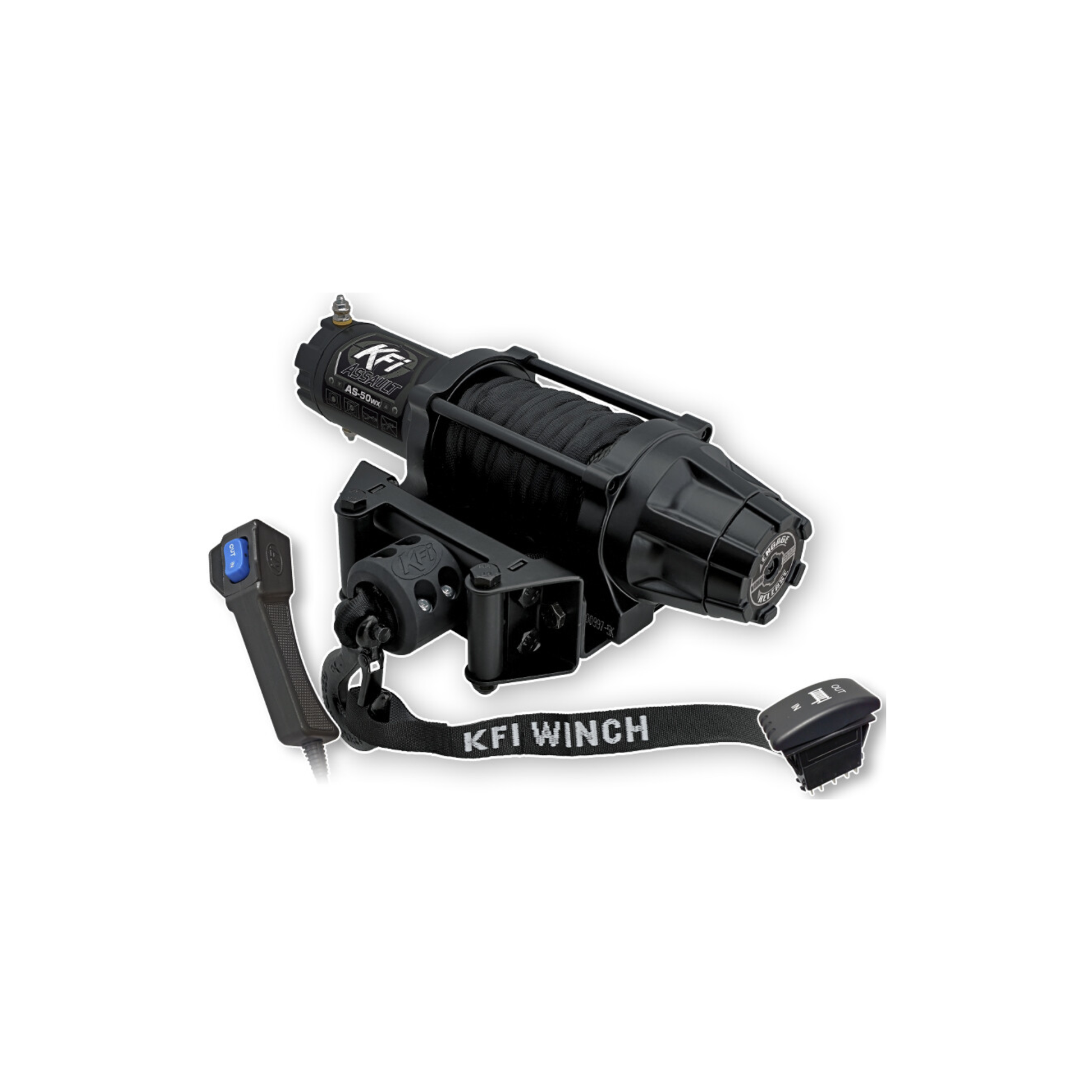

KFI 5000 lb Wide Assault Series UTV/SxS Winch - AS-50WX
The KFI 5000 lb Wide Assault Series Winch is a strong recovery upgrade for UTV and side-by-side owners who need dependable pulling power on the trail, around the property, in mud, or while plowing snow.
This wide-body Assault Series winch features a 5,000 lb. rated line pull, synthetic rope, water-resistant seals, dynamic and mechanical braking, and an all-metal planetary gear drive. The wide 4-hole mounting pattern and 50' synthetic cable make it a great option for many UTV and SxS setups that require the wider winch design.
Key Features
- 5,000 lb. rated line pull
- Wide Assault Series design
- 50' synthetic cable with protective sheath and end loop
- 12V DC, 1.22 HP permanent magnet motor
- All-metal planetary gear drive
- 180:1 gear ratio
- Dynamic and mechanical braking system
- Water-resistant seals help protect internal components
- All-metal cam-activated free spool clutch
- Multi-directional POM roller fairlead
- Dash-mounted rocker switch included
- 14' corded handheld remote included
- Heavy-duty electric contactor included
- Cable hook stopper included
- Fairlead mount included
- Wiring and installation hardware included
Product Specs
| Part Number | 10-0213 |
| Brand Number | AS-50WX |
| Rated Line Pull | 5,000 lbs. |
| Rope Type | Synthetic Cable |
| Synthetic Cable Size | 15/64" x 50' |
| Motor | 12V DC, 1.22 HP Permanent Magnet |
| Gear Ratio | 180:1 |
| Gear / Transmission | All-Metal Planetary Gear Drive |
| Brake | Dynamic and Mechanical |
| Drum Size | 1.75" D x 4.88" L |
| Winch Dimensions | 15.63" L x 4.45" D x 4.76" H |
| Mounting Bolt Pattern | 3.00" x 6.60" 4-Hole Wide |
| Recommended Battery | 12 Amp/hour minimum |
| Winch Weight | 27.8 lbs. complete kit |
What Is Included?
- KFI AS-50WX 5000 lb. Wide Assault Series Winch
- 50' synthetic cable with protective sheath
- Dash-mounted rocker switch
- 14' corded handheld remote
- Heavy-duty electric contactor
- Cable hook stopper
- Fairlead mount
- Wiring and installation hardware
- Detailed installation instructions
Important Fitment Note
This is the wide version of the KFI 5000 lb. Assault Series Winch and uses a 3.00" x 6.60" 4-hole wide mounting pattern. A vehicle-specific winch mount is required and sold separately. Please verify that your winch mount accepts the wide bolt pattern before ordering.
The KFI AS-50WX is a great choice for UTV and SxS owners who want strong, reliable pulling power for trail recovery, work use, mud riding, snow plowing, hunting, and off-road adventures.
