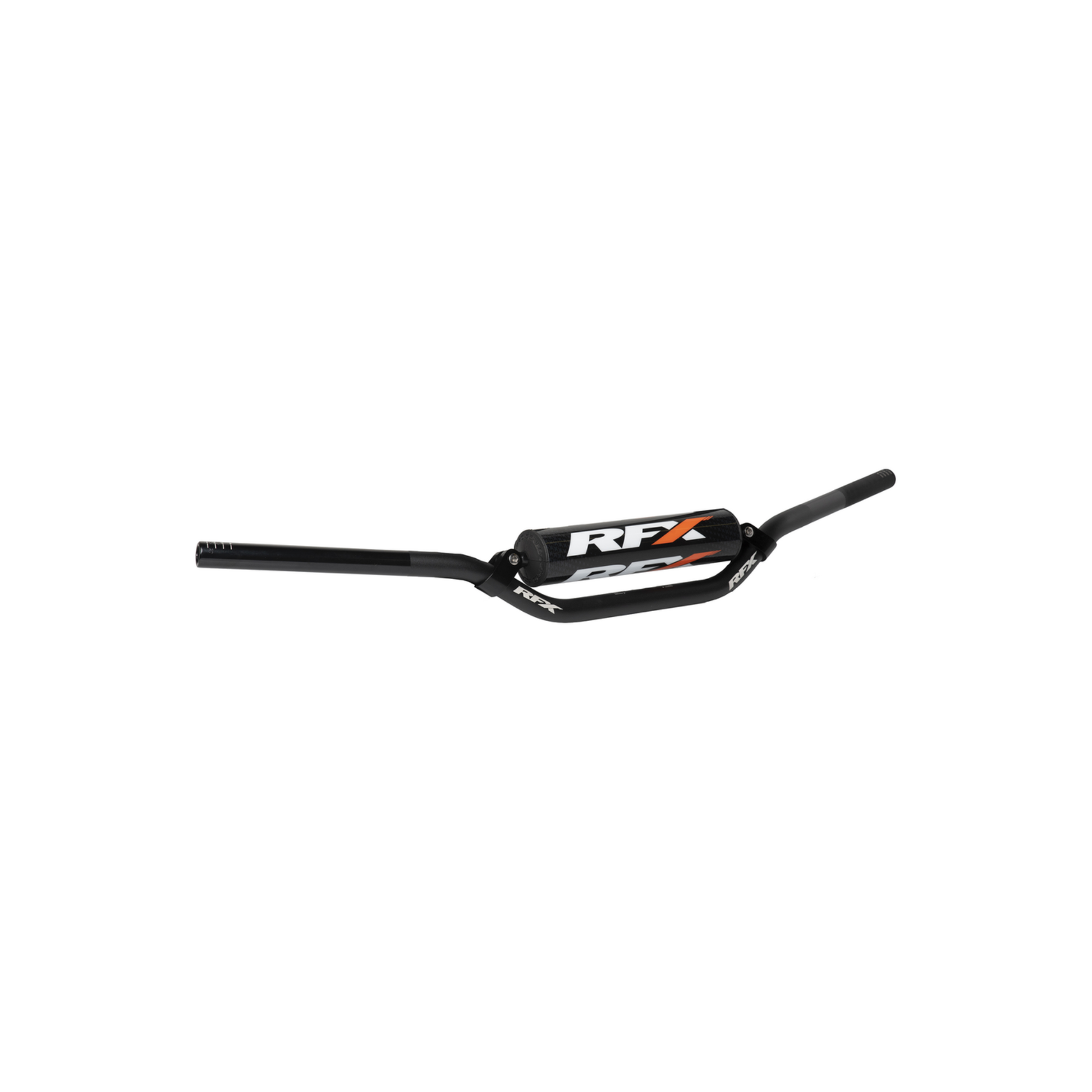

RFX Pro F22 7/8" Handlebars
Lightweight 7075-T6 aluminum construction, controlled flex, and the popular Stewart bend for motocross and off-road riding.
The RFX Pro F22 Handlebars are designed for riders who want premium RFX performance in a traditional 22.2 mm / 7/8-inch mounting diameter. Manufactured from high-strength 7075-T6 aluminum, the F22 combines dependable strength with carefully controlled flex for a comfortable and responsive feel.
This model features the popular Stewart bend, which offers a relatively low rise and balanced sweep for riders who prefer a direct, performance-focused cockpit position.
Strong and Lightweight
7075-T6 aluminum provides an excellent combination of low weight, strength, and resistance to demanding motocross use.
Controlled Flex
Engineered Flex Technology helps provide a responsive feel without making the handlebar unnecessarily harsh.
Reduced Vibration
Progressive Damping Control helps manage vibration transferred through the grip area to reduce rider fatigue.
Product Features
Premium Performance for Standard 7/8" Bar Mounts
The F22 maintains a constant 22.2 mm diameter throughout the handlebar, making it a premium option for motorcycles equipped with traditional 7/8-inch handlebar mounts.
- 7075-T6 aluminum construction for strength and crash resistance
- Constant 22.2 mm diameter throughout the handlebar
- Engineered Flex Technology for controlled compliance
- Progressive Damping Control helps reduce vibration
- Stewart bend for a low, performance-focused riding position
- Black finish for a clean, factory-inspired appearance
- Suitable for motocross, enduro, trail, and off-road applications
- Directly compatible with appropriate 22.2 mm / 7/8-inch bar mounts
Product Specifications
| Product | RFX Pro F22 Handlebar |
|---|---|
| Bend | Stewart |
| Color | Black |
| Mounting Diameter | 22.2 mm / 7/8 inch |
| Material | 7075-T6 aluminum |
| WPS Part Number | 739-0748 |
| RFX Manufacturer Number | FXHB 22002 99BK |
| Product Type | Motocross and off-road motorcycle handlebar |
RFX F22 Stewart Bend Dimensions
All handlebar measurements are shown in millimeters.
| Part Number | Bend | Mount | Width A | Height B | Rise C | Control Area D | Sweep E |
|---|---|---|---|---|---|---|---|
| 739-0748 | Stewart | 22.2 mm | 805 mm | 93 mm | 50 mm | 205 mm | 55 mm |
Handlebar Cross-Reference
The RFX Stewart bend is commonly compared with the Renthal Twinwall 996 and Renthal 7/8-inch 983 bends. These numbers should be used as comparison references rather than guaranteed exact replacements.
Important Fitment Information
Confirm the Mounting Diameter
This handlebar uses a constant 22.2 mm / 7/8-inch diameter. It is not designed to clamp directly into oversized 28.6 mm / 1-1/8-inch bar mounts unless the correct reducers or mounting hardware are used. Check your motorcycle's current handlebar mounts before ordering.
Installation and Control Clearance
Before riding, confirm proper clearance for the throttle, brake hose, clutch cable, switches, number plate, fuel tank, and other controls through the complete steering range. Tighten the handlebar mounts and controls according to the motorcycle manufacturer's recommended torque specifications.
