RFX Pro F7 1-1/8" Tapered Handlebars | Motocross & Off-Road
RFX Pro F7 1-1/8" Tapered Handlebars | Motocross & Off-Road
SKU:739-0749
1 in stock
Couldn't load pickup availability

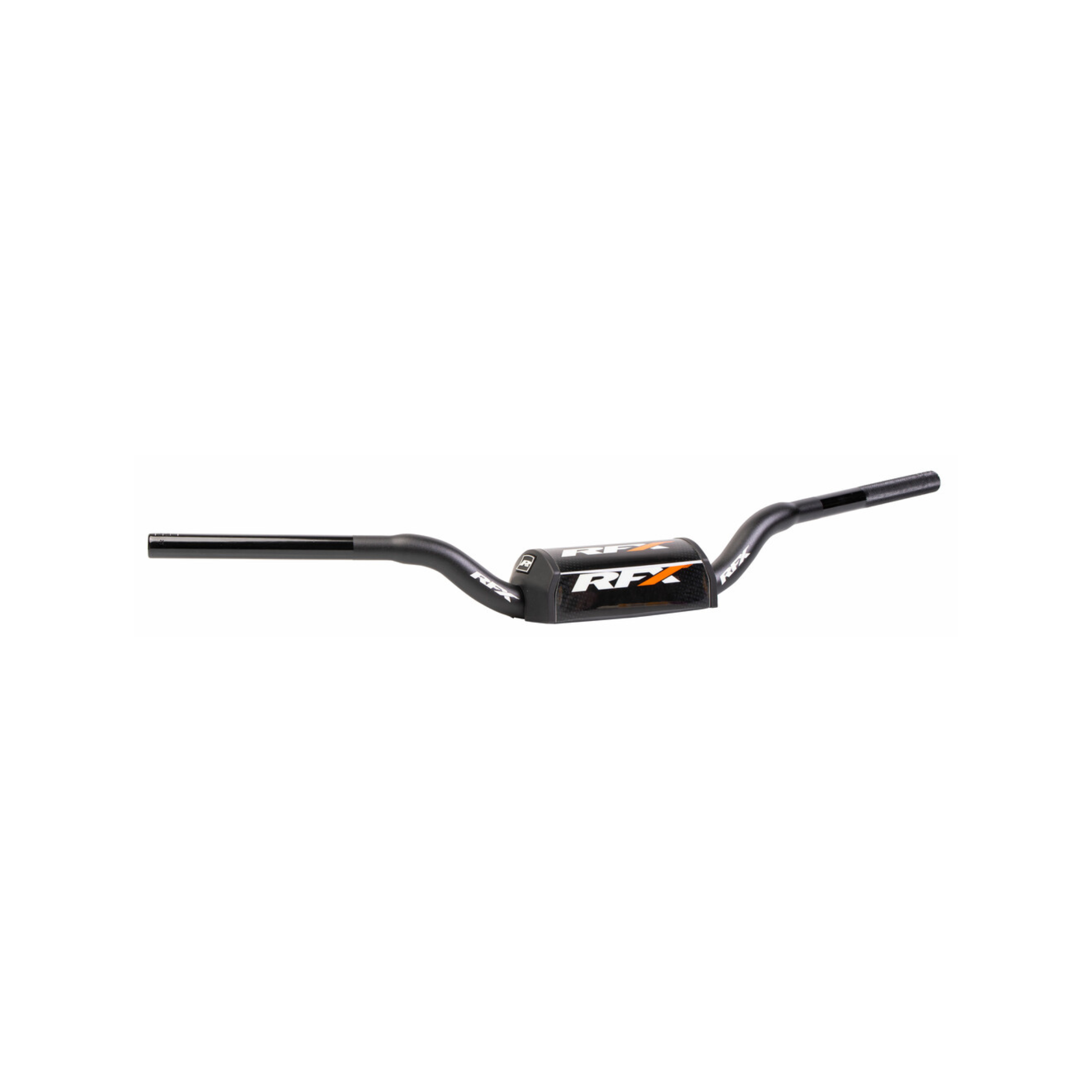

RFX Pro F7 Tapered Handlebars
Race-inspired strength, controlled flex, and dependable comfort for motocross and off-road riders.
The RFX Pro F7 Handlebars are engineered for riders who want a strong, responsive handlebar without an overly harsh feel. Constructed from heat-treated 7075-T6 aluminum, the F7 combines lightweight performance with the durability needed for demanding motocross, enduro, trail, and off-road riding.
Unlike a traditional crossbar-style handlebar, the F7 uses a tapered design that allows a carefully controlled amount of flex. This helps reduce the sharp impacts and vibration transferred to the rider while maintaining accurate front-end feedback and confident control.
Why Riders Choose the RFX Pro F7
- 7075-T6 aluminum construction: Delivers an excellent combination of strength, low weight, and dependable performance.
- Engineered Flex Technology: Provides controlled handlebar flex to help absorb harsh impacts while preserving front-wheel feel.
- Oversize Taper Extension: Extends the larger center section beyond the handlebar bends to reinforce areas exposed to high loads.
- Progressive Damping Control: Uses a carefully engineered grip-area wall thickness to help reduce vibration and rider fatigue.
- Knurled clutch-side surface: Helps prevent the left grip from slipping or twisting during aggressive riding.
- Polished throttle-side surface: Supports smooth throttle-tube operation and easier installation.
- Laser-etched alignment grid: Makes it easier to center the handlebars and repeat your preferred riding position.
- Multiple bend options: Choose the available bend and finish that best match your motorcycle and riding position.
Built for Better Control and Reduced Fatigue
The F7's tapered, crossbar-free design offers more compliant flex than a heavily braced handlebar. This can help reduce arm fatigue and harsh feedback during braking bumps, square-edge impacts, rough trails, and long motos.
Product Features
| Handlebar Type | Oversized tapered handlebar |
| Clamp Diameter | 28.6 mm / 1-1/8 inch |
| Material | Heat-treated 7075-T6 aluminum |
| Construction | Crossbar-free tapered design |
| Available Options | Select bend and finish from the available variants |
| Included | RFX handlebar pad |
Choosing the Correct Bend
Handlebar bend affects your hand position, standing posture, leverage, and overall comfort. Compare the width, height, rise, and sweep of each available variant with your current handlebars before ordering. Taller bends may provide additional room for standing, while lower or flatter bends can create a more direct and aggressive riding position.
Important Fitment Information
These handlebars use an oversized 28.6 mm or 1-1/8 inch mounting area. Verify that your motorcycle is equipped with compatible oversized bar mounts before ordering. Motorcycles with standard 22.2 mm or 7/8-inch mounts will require compatible oversized mounts or adapters.
RFX Pro F7 Handlebar Dimensions
Compare handlebar width, height, rise, clamp area, sweep, and equivalent bends to select the RFX F7 bar that best matches your preferred riding position.
Handlebar bend can affect rider comfort, standing position, steering leverage, and front-end feel. Use the measurements below to compare each RFX F7 option with your current handlebars. All dimensions are shown in millimeters.
How to Read the Measurements
RFX F7 Bend and Dimension Chart
Compare the primary dimensions and suggested motorcycle applications.
| F7 Part Number | RFX Bend Name | Suggested Application | Color | Width A | Height B | Rise C | Clamp Area D | Sweep E |
|---|---|---|---|---|---|---|---|---|
| 739-0749 | RC | Honda CRF / Kawasaki KXF | Black | 802 mm | 99 mm | 65 mm | 200 mm | 54 mm |
| 739-0750 | Stewart | Kawasaki KX | Black | 805 mm | 93 mm | 50 mm | 205 mm | 55 mm |
| 739-0751 | Windham / Tortelli | Yamaha YZ125, 1996-2001 reference | Black | 803 mm | 92 mm | 56 mm | 210 mm | 57 mm |
| 739-0752 | RC High | High-bend riding position | Black | 802 mm | 114 mm | 80 mm | 200 mm | 54 mm |
| 739-0753 | RC Mini | OEM Honda CRF150 reference | Black | 740 mm | 118 mm | 83 mm | 175 mm | 42 mm |
| 739-0754 | KTM | KTM SX / SX-F 125-450, 2013-2016 reference | Black | 810 mm | 92 mm | 52 mm | 188 mm | 52 mm |
| 739-0755 | McGrath | McGrath / KTM 2016-on reference | Black | 813 mm | 78 mm | 42 mm | 150 mm | 54 mm |
| 739-0756 | Yamaha | Yamaha YZ / YZ-F | Black | 801 mm | 89 mm | 59 mm | 125 mm | 56 mm |
Comparable Handlebar Bend Cross-Reference
Use this table when replacing a similar ProTaper or Renthal handlebar bend.
| RFX F7 Bend | F7 Part Number | ProTaper Reference | Renthal Fatbar | Renthal Twinwall | Renthal 7/8" |
|---|---|---|---|---|---|
| RC | 739-0749 | Windham / RM Mid | 604 | 997 | 971 |
| Stewart | 739-0750 | — | — | 996 | 983 |
| Windham / Tortelli | 739-0751 | Henry / Reed | 603 | 998 | 966 |
| RC High | 739-0752 | KX High | 609 | 922 | 809 |
| RC Mini | 739-0753 | — | 671 | 923 | 784 |
| KTM | 739-0754 | — | 827 | — | — |
| McGrath | 739-0755 | — | 821 | — | — |
| Yamaha | 739-0756 | — | 602 | — | — |
Selection note: Motorcycle references and competing handlebar numbers are intended as comparison guides, not guaranteed vehicle-specific fitment. Compare the dimensions with the rider's current bar and confirm that the motorcycle uses compatible 28.6 mm / 1-1/8-inch oversized handlebar mounts before ordering.
