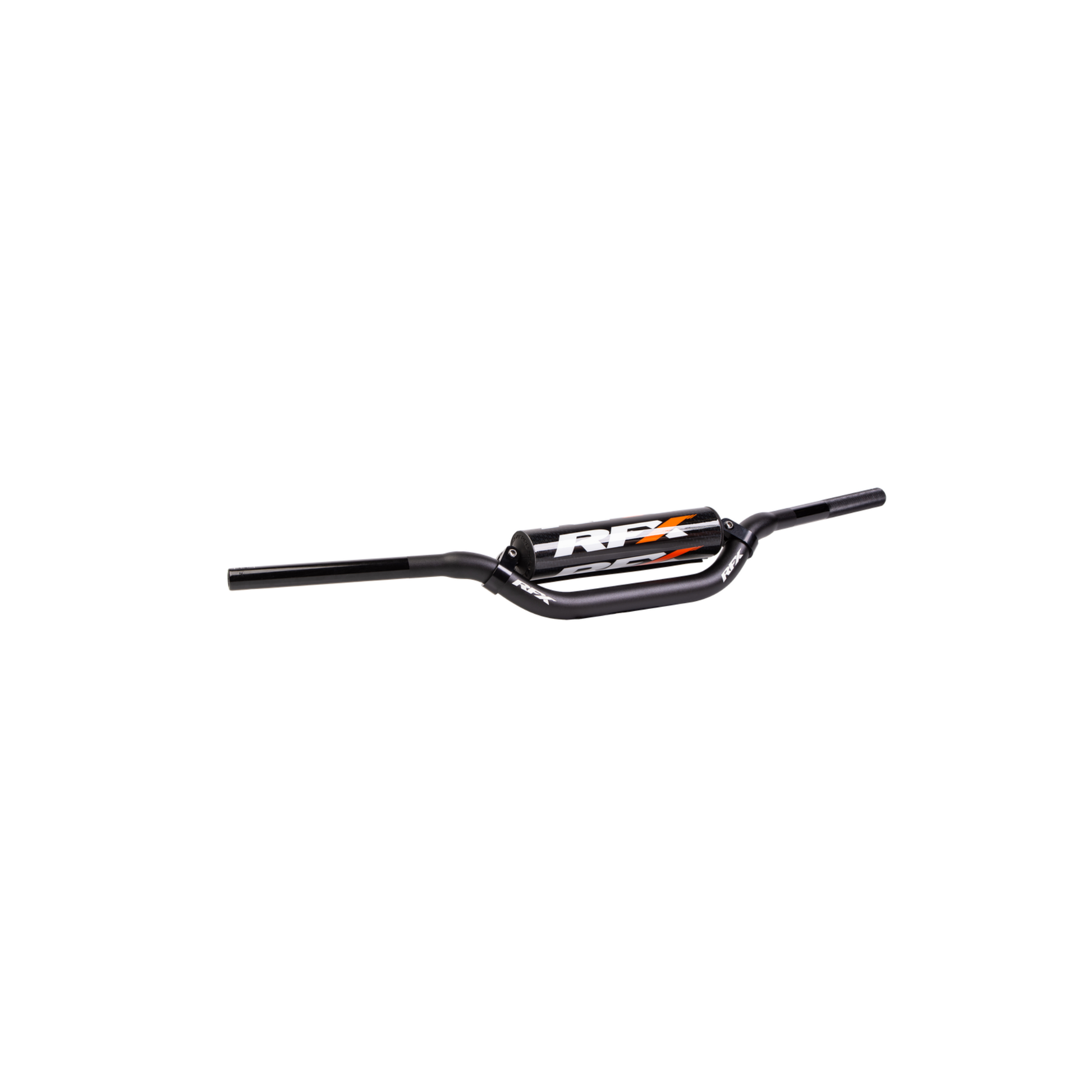

RFX Pro F8 Tapered Handlebars

Competition-level strength, controlled flex, and a reinforced crossbar design for motocross and off-road riders who prefer a firmer handlebar feel.

The RFX Pro F8 Handlebars combine lightweight 7075-T6 aluminum construction with an oversized tapered profile and incorporated cross-brace. The result is a strong, responsive motocross handlebar designed to provide accurate front-end feedback while helping manage vibration and harsh impacts.

Compared with the crossbar-free RFX F7, the F8 offers a slightly firmer and more connected feel. It is an excellent choice for racers and aggressive off-road riders who want controlled flex without sacrificing the familiar support of a traditional crossbar design.

Competition-Level Strength

Heat-treated 7075-T6 aluminum, extended oversized sections, and a reinforced crossbrace help support demanding motocross use.

Controlled Rider Feedback

Engineered wall thickness provides carefully controlled flex while maintaining a precise and connected front-end feel.

Reduced Vibration

Progressive Damping Control is designed to help manage vibration through the grip area and reduce rider fatigue.

RFX F8 Technology

F8 versus F7: Which Handlebar Is Right for You?

Choose the F8 when you prefer a firmer feel and the added support of an incorporated cross-brace. Choose the crossbar-free F7 when you prefer slightly more handlebar compliance. Both use an oversized 28.6 mm mounting area.

  • 7075 aerospace-grade aluminum construction
  • T6 heat treatment for increased tensile strength
  • Incorporated cross-brace for a firmer riding feel
  • Oversize Taper Extension reinforces high-stress areas
  • Engineered Flex Technology helps manage harsh impacts
  • Progressive Damping Control helps reduce vibration
  • Shot-peened finish helps improve service life
  • Knurled clutch-side area helps prevent grip movement
  • Polished throttle area supports smooth throttle action
  • Laser-etched alignment grid aids precise installation
  • Anodized finish helps resist corrosion
  • High-density handlebar pad with PVC cover included

Product Specifications

Product Type Oversized tapered motocross and off-road handlebar with cross-brace
Mounting Diameter 28.6 mm / 1-1/8 inch
Material Heat-treated 7075-T6 aluminum
Handlebar Design Tapered construction with incorporated cross-brace
Finish Shot-peened and anodized
Color Black
Available Bends RC, Stewart, Windham/Tortelli, RC High, RC Mini, KTM, McGrath, and Yamaha
Included High-density foam crossbar pad with durable PVC cover

RFX Pro F8 Handlebar Dimensions

All handlebar measurements are shown in millimeters.

A Width Overall handlebar width
B Height Total vertical handlebar height
C Rise Vertical rise from the mounting area
D Clamp Area Straight center mounting section
E Sweep Rearward position of the grip area
On a phone, swipe left or right to view the complete chart.
F8 Part Number Bend Motorcycle/Bend Reference Mount Width A Height B Rise C Clamp Area D Sweep E
739-0766 RC Honda CRF / Kawasaki KXF reference 28.6 mm 802 mm 99 mm 65 mm 200 mm 54 mm
739-0767 Stewart Kawasaki KX reference 28.6 mm 805 mm 93 mm 50 mm 205 mm 55 mm
739-0768 Windham / Tortelli Yamaha YZ125 1996-2001 reference 28.6 mm 803 mm 92 mm 56 mm 210 mm 57 mm
739-0769 RC High High-bend riding position 28.6 mm 802 mm 114 mm 80 mm 200 mm 54 mm
739-0770 RC Mini OEM Honda CRF150 reference 28.6 mm 740 mm 118 mm 83 mm 175 mm 42 mm
739-0771 KTM KTM SX / SX-F 125-450, 2013-2016 reference 28.6 mm 810 mm 92 mm 52 mm 188 mm 52 mm
739-0772 McGrath McGrath / KTM 2016-on reference 28.6 mm 813 mm 78 mm 42 mm 150 mm 54 mm
739-0773 Yamaha Yamaha YZ / YZ-F reference 28.6 mm 801 mm 89 mm 59 mm 125 mm 56 mm

Comparable Handlebar Bend Cross-Reference

Use these numbers to compare an RFX F8 bend with similar ProTaper and Renthal handlebars.

On a phone, swipe left or right to view the complete chart.
RFX F8 Bend F8 Part Number ProTaper Reference Renthal Fatbar Renthal Twinwall Renthal 7/8"
RC 739-0766 Windham / RM Mid 604 997 971
Stewart 739-0767 — — 996 983
Windham / Tortelli 739-0768 Henry / Reed 603 998 966
RC High 739-0769 KX High 609 922 809
RC Mini 739-0770 — 671 923 784
KTM 739-0771 — 827 — —
McGrath 739-0772 — 821 — —
Yamaha 739-0773 — 602 — —

Choosing the Correct Handlebar Bend

Motorcycle names and competing handlebar numbers are provided as comparison references rather than guaranteed vehicle-specific fitment. Compare the width, height, rise, clamp area, and sweep with your current handlebar before ordering. Confirm that the motorcycle has compatible 28.6 mm / 1-1/8-inch oversized bar mounts. Motorcycles equipped with standard 22.2 mm / 7/8-inch mounts require compatible oversized mounts or adapters.

Installation Note

Confirm adequate clearance for the throttle, cables, brake hose, controls, number plate, and fuel tank through the full steering range. Tighten the handlebar mounts and controls according to the motorcycle manufacturer's recommended torque specifications.
