Vertex Cast Piston Kit 24717B | Polaris RZR, Ranger & General 92.95mm STD

Vertex Cast Piston Kit | Part# 175-24398B | 24717B

The Vertex Cast Piston Kit 24717B is a standard bore replacement piston kit for select Polaris RZR, Ranger, General, and ACE models. Built for engine repair, top-end service, and rebuild work, this 92.95mm cast piston kit is a solid replacement option when your original piston is worn, damaged, or out of service specification.

Vertex cast replica pistons are designed as OEM-style replacement pistons and are commonly used by riders and mechanics who want dependable fit, proper sealing, and reliable engine performance during a rebuild or top-end refresh.

Key Features

• Cast replacement piston kit for select Polaris models
• 92.95mm standard bore size
• OEM-style replacement design
• Moly-coated piston skirt helps reduce wear during break-in
• Designed for top-end service, repair, and engine rebuild work
• Fits many popular Polaris RZR, Ranger, General, and ACE 900/1000 applications

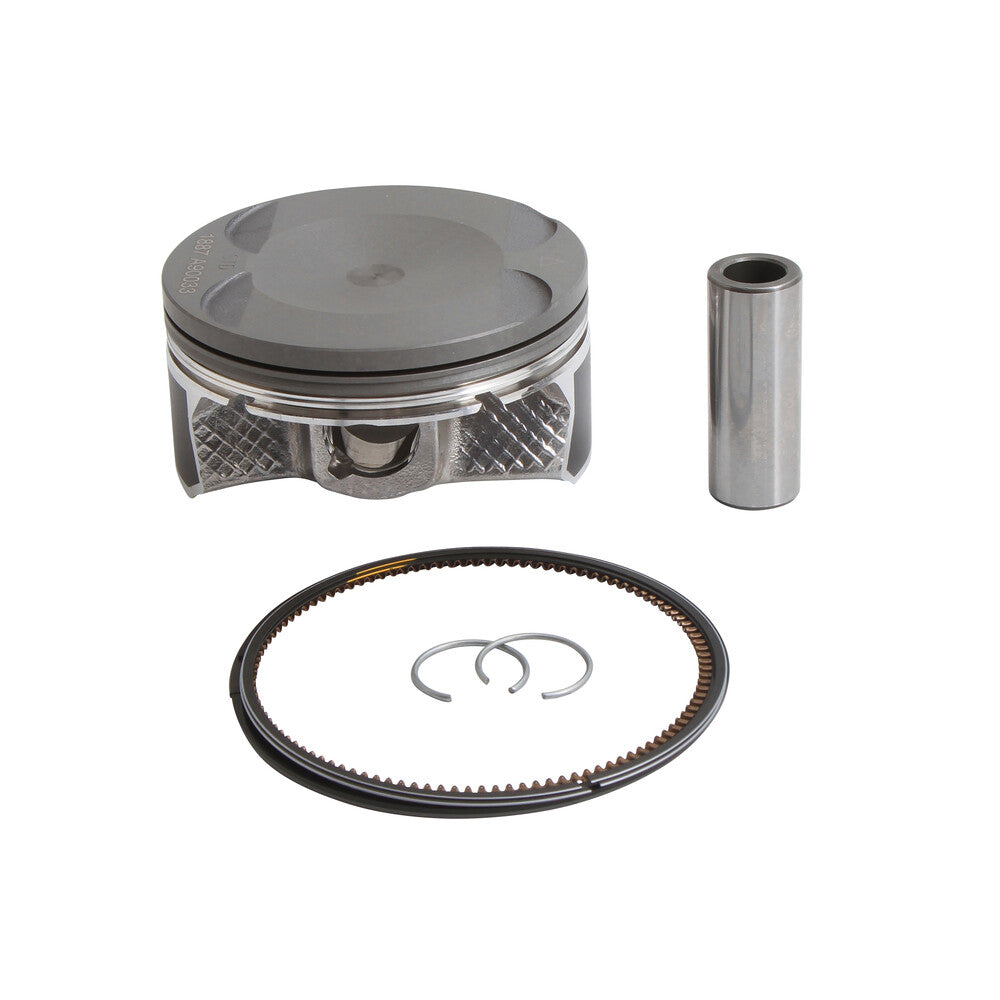

Kit Includes

• Piston
• Piston rings
• Wrist pin
• Circlips

Quantity Note: This is typically sold as a single piston kit for one cylinder. Many Polaris 900 and 1000 engines are twin-cylinder engines, so a complete top-end rebuild may require two piston kits. Always verify quantity needed before ordering.

Simplified Fitment Guide

Polaris General Models

• General 1000: Select 2016–2025 models
• General 4 1000: Select 2017–2025 models
• General XP 1000: Select 2020–2025 models
• General XP 4 1000: Select 2020–2025 models

Polaris RZR 900 Models

• RZR 900 / RZR 900 EPS: Select 2015–2020 models
• RZR 900 S / RZR 900 S EPS: Select 2015–2019 models
• RZR 900 Trail / Trail Premium / Trail Ultimate: Select 2016–2025 models
• RZR 900 Trail S Sport: Select 2021–2025 models

Polaris RZR 1000 Models

• RZR XP 1000: Select 2014–2025 models
• RZR XP 4 1000: Select 2014–2025 models
• RZR 1000 S: Select 2016–2020 models
• RZR 1000 Trail S: Select 2020–2025 models
• RZR 1000 RS1: Select 2018–2022 models
• RZR S4 1000: Select 2019–2020 models
• High Lifter, Trails & Rocks, Dynamix, Ride Command, and Premium/Sport trims: Select years listed in fitment

Polaris Ranger 900 Models

• Ranger XP 900: Select 2013–2024 models
• Ranger Crew 900 / Crew XP 900: Select 2014–2019 models

Polaris Ranger 1000 Models

• Ranger 1000: Select 2020–2023 models
• Ranger Crew 1000: Select 2020–2023 models
• Ranger XP 1000: Select 2017–2025 models
• Ranger Crew XP 1000: Select 2017–2025 models
• Northstar, Trail Boss, Texas Edition, High Lifter, Premium, and Ultimate trims: Select years listed in fitment

Polaris ACE Models

• ACE 900 / ACE 900 XC / ACE 900 SP: Select 2016–2019 models

Fitment Note: This is a simplified fitment guide based on the supplied application list. Fitment can vary by exact year, trim package, engine size, and production model. Always verify your exact year, make, model, and submodel before ordering.

Product Details

• Brand: Vertex
• Part Number: 175-24398B
• Manufacturer / Brand Number: 24717B
• Product Type: Cast Piston Kit
• Bore Size: 92.95mm
• Size: Standard
• Vehicle Type: Polaris ATV / UTV / Side-by-Side

When to Replace a Piston Kit

• Low compression
• Excessive oil consumption
• Piston, ring, or cylinder wear
• Engine noise or top-end damage
• Top-end rebuild or engine repair
• Valve, cylinder, or crankcase service where piston replacement is recommended

Why Choose a Vertex Piston Kit?

Vertex piston kits are a trusted option for powersports engine repair and rebuild work. This cast 92.95mm standard bore piston kit is designed to help restore compression, sealing, and dependable performance in compatible Polaris engines.

FAQ

What does the Vertex 24717B piston kit fit?

This piston kit fits select Polaris RZR, Ranger, General, and ACE models from the supplied fitment list, including many 900cc and 1000cc Polaris applications. Always verify your exact year, make, model, and trim before ordering.

What size is this piston?

This is a 92.95mm standard bore piston kit.

What comes in the kit?

The kit commonly includes the piston, piston rings, wrist pin, and circlips.

Do I need one or two piston kits?

This is typically sold as one piston kit for one cylinder. Many Polaris 900 and 1000 engines are twin-cylinder engines, so a full rebuild may require two kits.

Is this a forged piston?

No. This is a cast piston kit designed as an OEM-style replacement.
